6.0L / 6.4L Ford Powerstroke Diesel

Injector Sleeve Tool Set
for all
2003 - 2010 6.0L AND 6.4L Engines

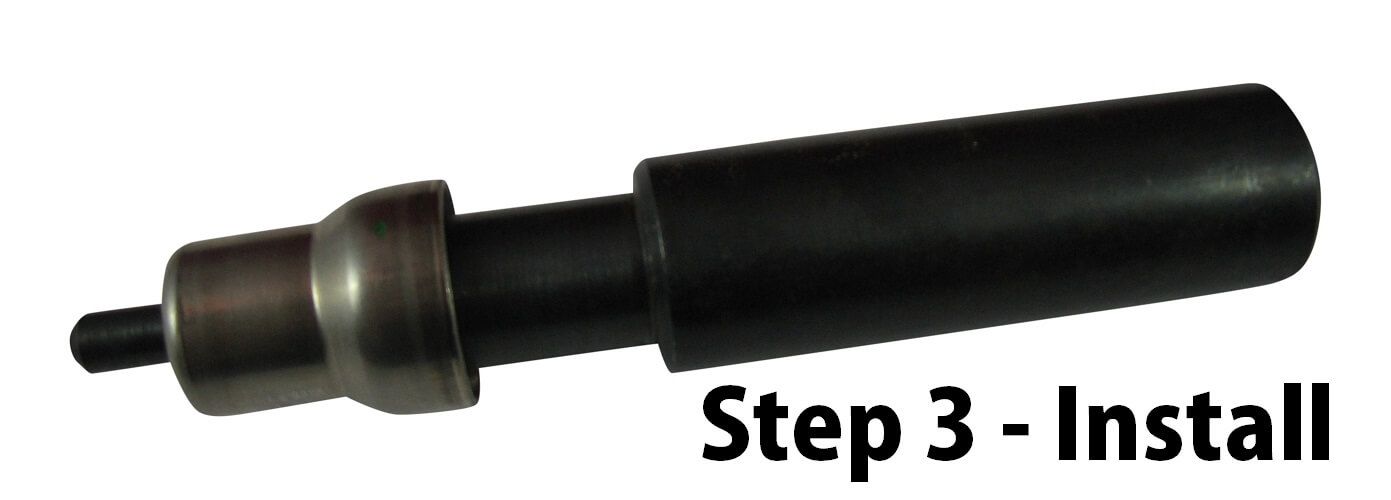

Our 6.0 Powerstroke injector cup tool / 6.4 injector sleeve remover tool offers several unique design features compared to competitive products. Unlike other products, our tap is separate from the puller portion of the tool. The advantage of this feature is that when the tap becomes damaged or worn over time, it is possible to purchase an inexpensive tap at the local hardware store as opposed to replacing an expensive and not-readily-available special tool. Because the 6.0L / 6.4L injector cups are made of hard steel and tend to be difficult to tap we have found this to be a significant consideration. The installation tool also incorporates an o-ring to retain the injector sleeve to the installer. This  prevents the frustration of having the injector sleeve continually dropping off the end of the tool while trying to maneuver it into position in the cylinder head.

Our kit has also been updated with a tap guide to keep the tap perfectly square and straight in the injector bore while cutting threads into the injector cup. All pieces come delivered in a plastic tube for handy storage in your toolbox when not in use.

The ability of our 6.0L / 6.4L injector sleeve tool set to service both engines is unique in the marketplace - other designs require a separate tool for each engine. By purchasing our injector cup removal & replacement tool you are getting double the value for your money, since only one tool is required for two applications.

Our 6.0L / 6.4L injector sleeve tool set offers a manufacturer's lifetime warranty to the original purchaser. To our knowledge, no other 6.0L sleeve tool set offers a warranty. Please note that the tap itself (which is easily replaced and inexpensive) is not covered under the warranty.

A leaking injector sleeve on a 6.0L can result in compression pressure building in the cooling system and/or coolant making it's way into one or more cylinders (other possible causes are head gasket or EGR cooler failure). Additionally injector sleeve failure may cause coolant to be found around the base of the fuel injector in the cylinder head.

The OEM Ford tool kit requires that the cylinder heads be removed from the vehicle in order to replace the sleeves. Our tool kit makes this repair a relatively simple job and allows the task to be performed with the heads on the vehicle in a fraction of the time saving thousands of dollars.

It is commonly misconceived that injector cup failure can cause the common 6.0L concern of diesel fuel being found in the engine's coolant. This is VERY unlikely, because in order for it to occur, there would have to be both an injector cup failure AND failure of the lower injector oring at the same time. Diesel fuel in the coolant on a 6.0L is almost universally caused by a crack in the injector bore of the cylinder head ABOVE the injector sleeve. AccurateDiesel.com offers an innovative and industry leading repair for this problem - click HERE for more information.

We also offer a complete kit to complete your repair including (8) OEM injector cups and a complete set of injector o-rings. Select below to add these parts to your order

Please click HERE for INSTRUCTIONS in PDF format.

Designed and Manufactured 100% with pride in the USA!

United States Flag

Item #: MPSPK1
Availability: In Stock
Usually ships In 1 business day
Price: $279.95
