6.0L Powerstroke

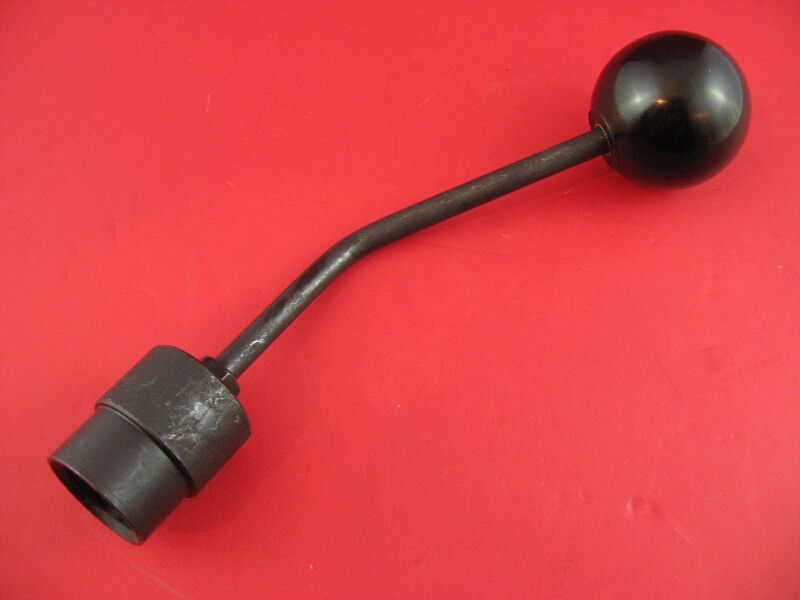

INJECTOR CONNECTOR REMOVAL TOOL

The injector connector on the 6.0L Powerstroke diesel sticks through a hole in the rocker box from the inside to the outside where it mates with the FICM harness. When removing the injector, it is necessary to push the connector back through the hole in the rocker box to the inside. This is complicated by plastic clips on the outside of the connector that keep it from pushing back. This handy little tool makes quick work of the process by neatly compressing the clips so that the connector will slide back through without breaking the clips.  This is especially important if you are planning to re-use the injector.

This 6.0L Powerstroke injector connector removal tool makes a great addition to any Powerstroke Tech's tool box!

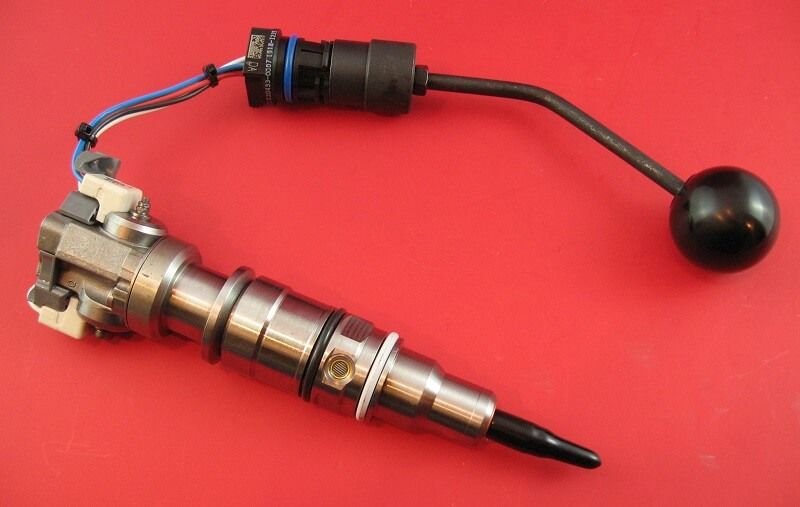

A fuel injector is not included - one is shown to display the function of the tool only.
